What’s the flatbed semi trailer ?

A flatbed trailer is a trailer designed to be suitable for transporting bulk cargo and containers between ship facilities and terminals. Basically, it is a piece of transport equipment that is mainly made up of a steel structure that defines its frame. It also includes lighting systems, brakes, and tires. In simple terms, it is a long platform of 20 feet, 40 feet, 48 feet, or 53 feet in length that is used to transport containers. A flatbed trailer does not have a roof or side walls. It is a bare platform on which containers of different sizes are secured with container locks for transportation. They are mainly used for the transportation of bulk cargo.

How to choose a flatbed semi-trailer ?

1、Load capacity: The load capacity also determines the type of trailer you need to choose. It can range from 10 tons to 80 tons. Again, this should be based on the different requirements of local laws and regulations on such matters. Various flatbed trailers carry a considerable amount of cargo size and weight.

2、Size: Flatbed trailers are designed to transport different cargoes and containers. A flatbed can not only pull two 20-foot containers but also a 40-foot or 45-inch container. If you need a flatbed to carry an oversized load, a retractable flatbed trailer will be the best choice. These requirements are usually considered when choosing based on size.

3、Axles: Different axle capacities depend on the transport needs and requirements. However, each choice based on axle configuration should also comply with local transport laws and regulations. Different types of flatbed trailers based on axle configuration include 11.5 tons per axle, 13 tons per axle, and 20 tons per axle flatbed trailers. Make sure you choose the type allowed in your country based on the prescribed laws and regulations. The number of axles per trailer is also an important consideration based on the cargo weight. The trailer structure is designed to support various axle assemblies at different locations along its length. Your choice should be made based on your cargo needs and the laws governing the use of flatbed trailers in your jurisdiction.

4、Tires: Different tire configurations are used depending on the amount of load that needs to be carried. However, this is also regulated by the government agencies of the respective countries. Some allow the use of single tires, while others do not. With single tires, you must ensure that the tires are properly distributed along the trailer.

（We can customize the flatbed semi-trailer you need according to your needs）

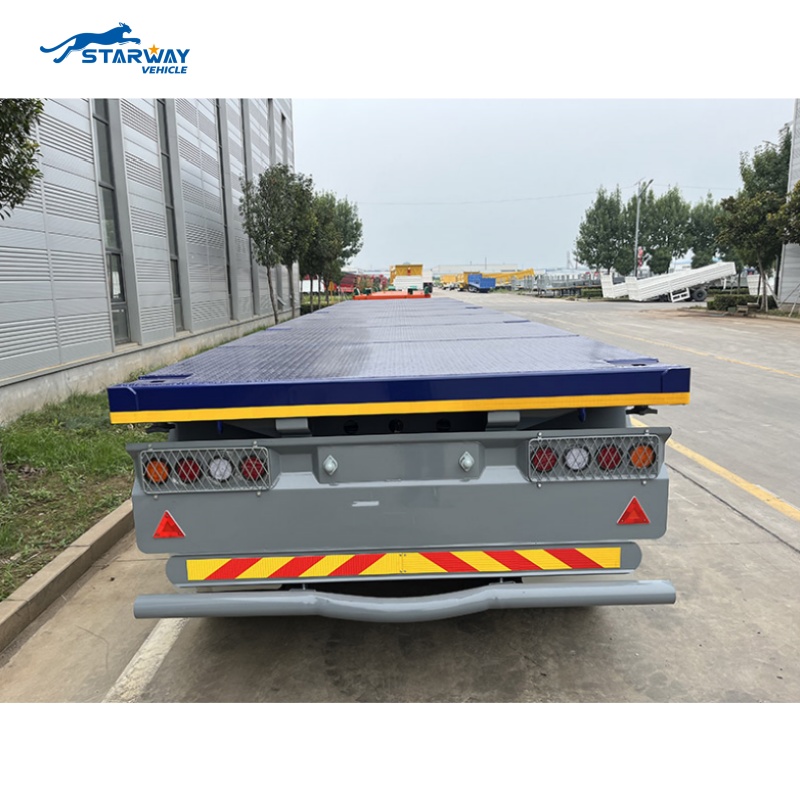

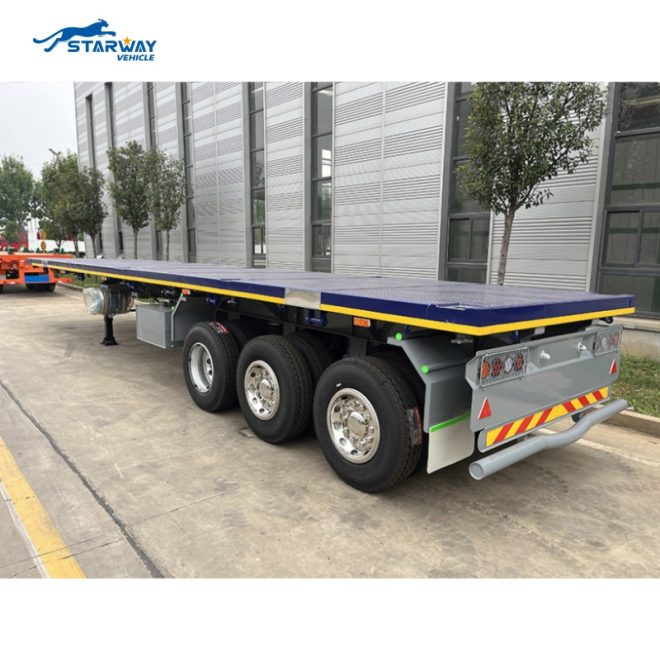

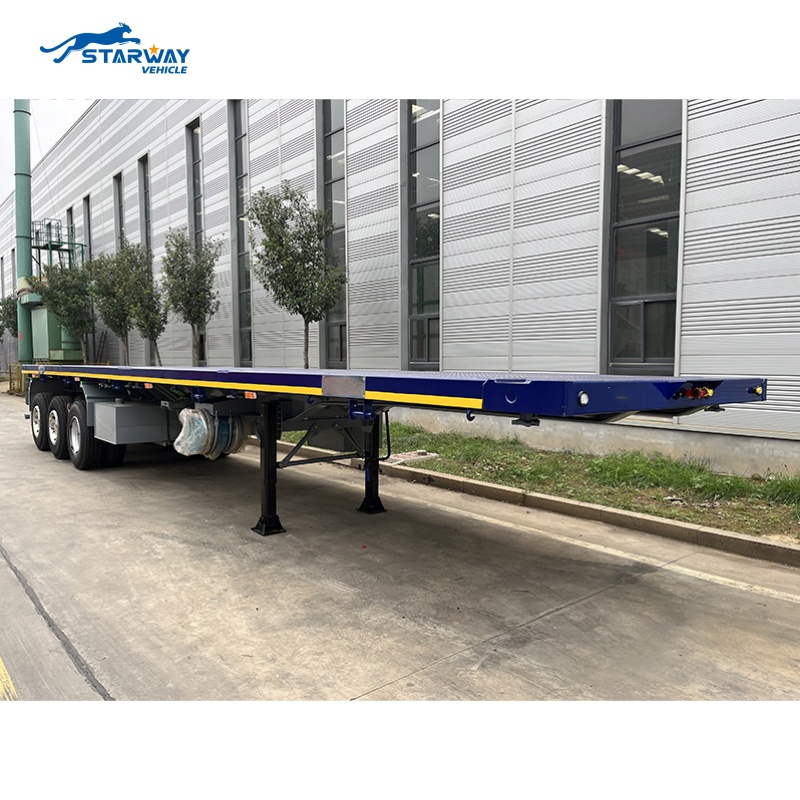

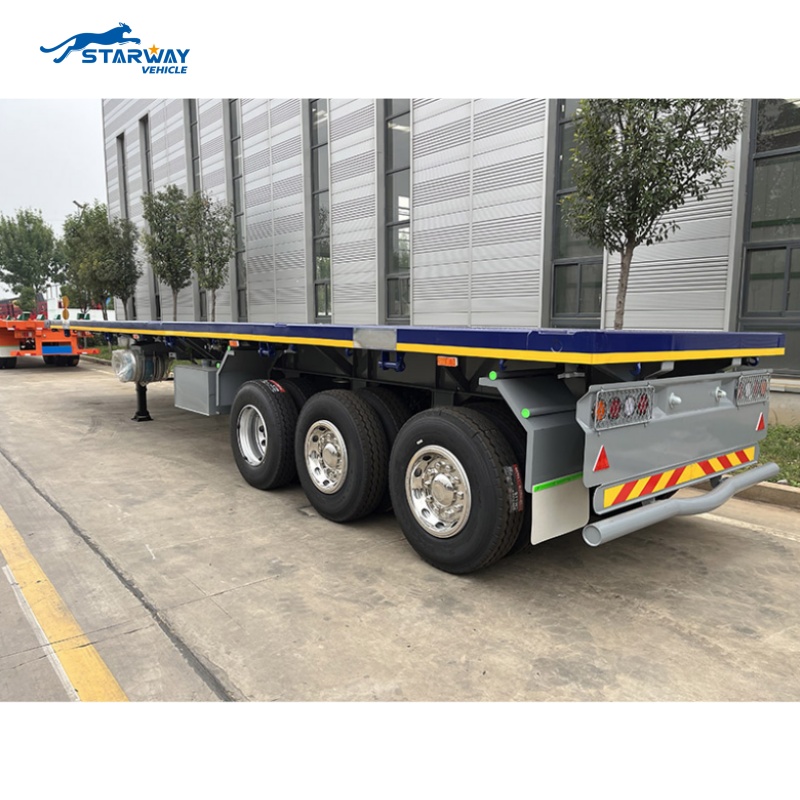

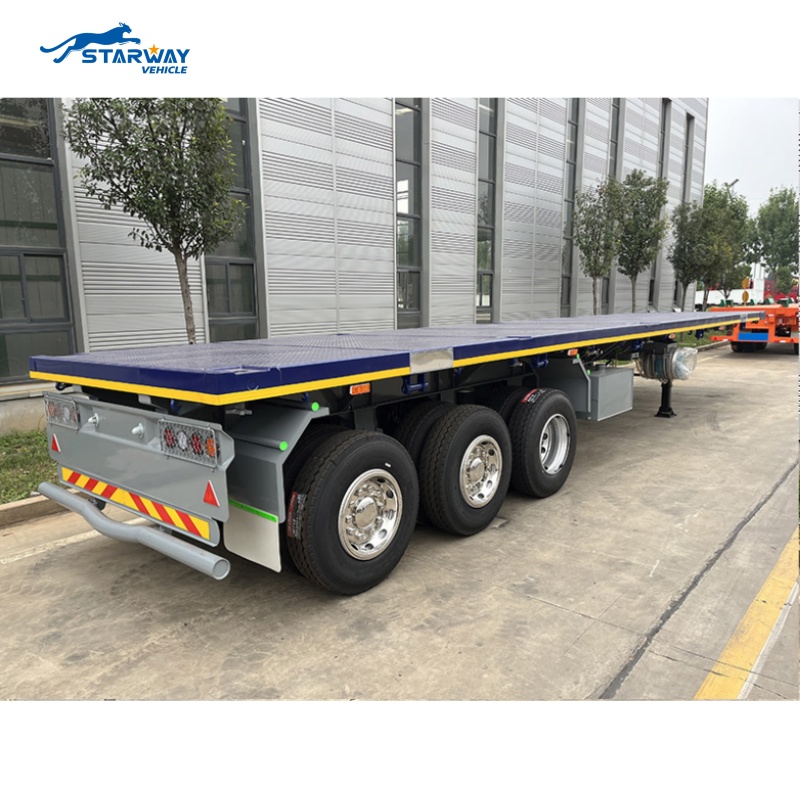

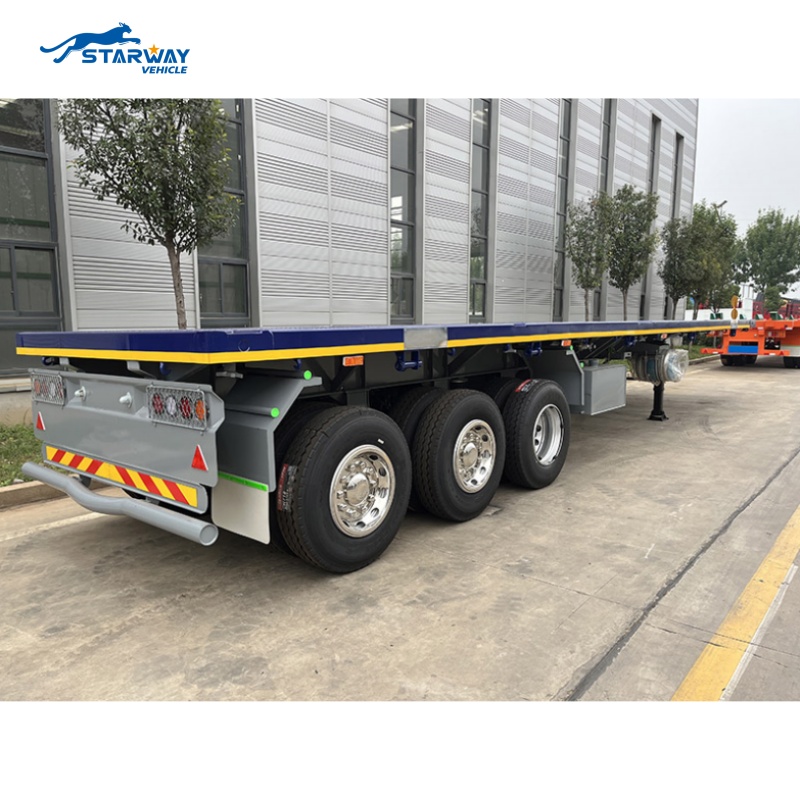

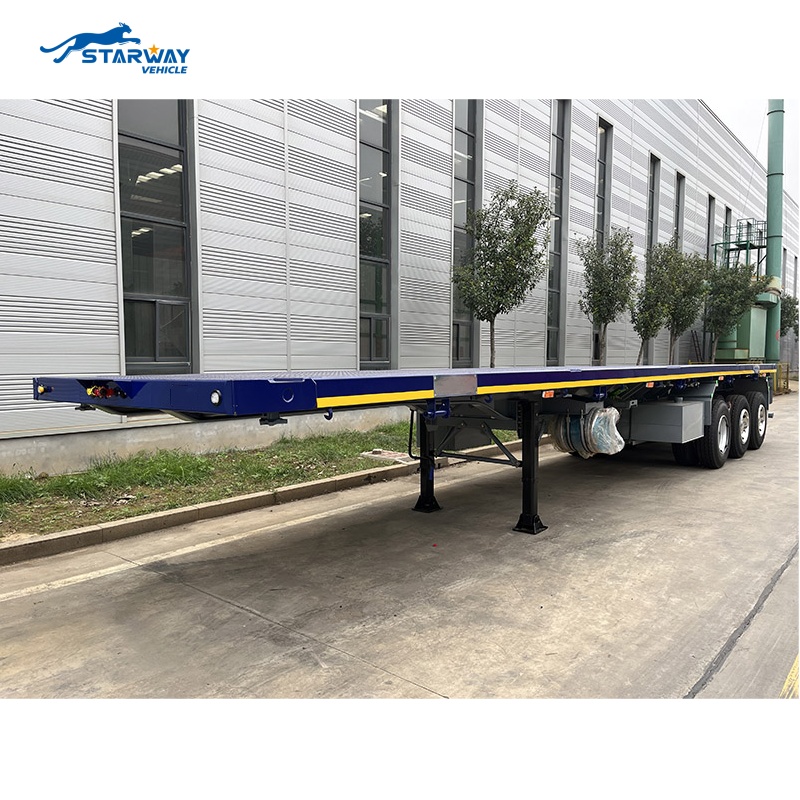

40ft flatbed semi trailer

What’s the standard specification of starway 40ft flatbed semi trailer ?

Dimension :12500x2500x1580mm

Main beam:material Q345B,”H” beam height:500mm ,top/middle /bottom;12/6/14 mm

Side beam :#16 channel steel

Loading capacity :45 T(Customer Requirement)

Paint: Powder spraying and coating

Color:Per customer’s requirement

Axle:BPW/Fuwa/Starway/ 13 ton x 3

Tire:12R22.5x 12 + one spare tyre

Rim:900*22.5 *13

Suspension:Mechanical suspension or air suspension(brand optional)

Leaf spring:Leaf spring 10pcs*90*13mm or air bag

Landing gear:JOST or other brand two-speed, landing gear 28T

Electrical System:24V 7-way socket; front marker lamp: white; side marker lamp: white & red; rear lamp: red; turning signal lamp: amber; wiring: electric cable protected by PVC conduit on main frame

Braking System :Dual line pneumatic brake, SAE hose and connector,without ABS

Accessories:Toolbox*1; spare tire carrier*2  ,    12 pcs container twist locking
